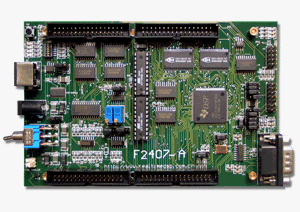

LF2407-A that based on TMS320LF2407APGEA DSP is advanced application board.
TMS320LF2407A has high-performance static CMOS Technology and low-power 3.3V design.For Ahigh-performance industrial applications,the Flash-based LF2407A digital signal controller includes peripherals such as a controller area network (CAN) module control of multiple motors by a single DSP-based controller.Now,TMS320LF2407A has been used widely for motor and converter control.
1. Hardware Features: DSP:TMS320LF2407APGEA,up-to 40MIPS operation
32k*16bit on-chip Flash,and code security for on-chip Flash(64bit)
Up to 16 channels PWM
Extend memory space:128k*16bit
16 channels,500-ns analog-to-digital (A/D) converter,precision:12bit
Extend 4 channels digital-to-analog (D/A) converter,precision:12bit
Digital I/O design
RS232 serial-data interface
CAN interface
Watchdog timer module
Serial communications interface (SCI)
Serial peripheral interface (SPI)
Boot-Rom
Up to 2 Event-Manager (EV) modules
Size:160mm×100mm
2. Application: Autocontrol
Electric Power/Electron Control
Motor Control
LF2407-C that based on TI TMS320LF2407APGEA DSP is customer board.
TMS320LF2407A has high-performance static CMOS Technology and low-power 3.3V design.For Ahigh-performance industrial applications,the Flash-based LF2407A digital signal controller includes peripherals such as a controller area network (CAN) module control of multiple motors by a single DSP-based controller.
Now,TMS320LF2407A has been used widely for motor and converter control.
1. Hardware Features:
DSP:TMS320LF2407APGEA,up-to 40MIPS operation
32k*16bit on-chip Flash,and code security for on-chip Flash(64bit)
Up to 16 channels PWM
16 channels,500-ns analog-to-digital (A/D) converter,precision:12bit
Program space:64k*16bit
Data space:64k*16bit
On-chip Flash:32k*16bit
On-chip RAM:2.5k*16bit
External DSP`s pins
Biger external area
2. Application: Autocontrol
Electric Power/Electron Control
Motor Control
DSP:TMS320LF2407APGEA,up-to 40MIPS operation
